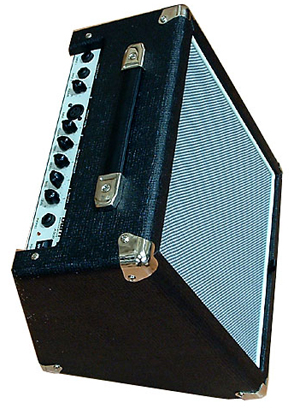

[A-30R]
30W ACOUSTIC GUITAR AMPLIFIER, 2 CHANNEL(MIC-XRL, PIEZO LINE)
3 BAND ACTIVE EQUALIZER, 8" COAXIAL SPEAKER,REVERB(SPRING TYPE)
KICKBACK TYPE CABINET
H,350m x D,300mm x W,370mm
FEATURES
2 Piezo pickup input and volume control
XLR Mic input and Volume control
3 band Active Equalizer (Treble,Middle,Bass)
Reverb control (spring type)
Stereo Headphone jack (1/4" jack)
Custom design 8" 2way coaxial speaker
Kickback type dynamic design
SPECIFICATIONS
Power Rating
30 Watts RMS @ 8 ohms (THD 5%)
AC 220V 60Hz (Fuse T500mA250V)
Frequency Response
-3dB @20Hz ~ 40kHz (Power Amplifier)
Treble +-15dB 10kHz
Middle +-15dB 1kHz
Bass +-15dB 100Hz
Input impedance
10k ohm Piezo input
600 ohm XLR Mic input
Speaker
8", 8 ohm 2way coaxial speaker
Dimensions
370mm(W) x 300mm(D) x 350mm(H)
Weight
9.5 kg
