[VCDR]

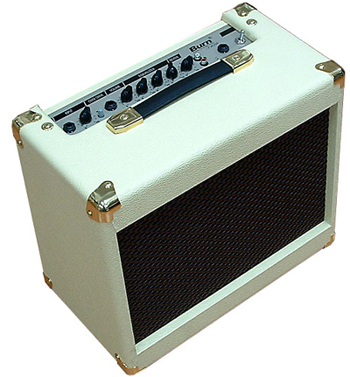

30W VINTAGE GUITAR AMPLIFIER,3 BAND EQUALIZER
BOOST SWITCH(OVER DRIVE), CD INPUT, REVERB (SPRING TYPE)
8" CUSTOM DESIGNED SPEAKER
GOLD METAL CORNER & LEATHER HANDEL
H,360mm x D,235mm x W,410mm
FEATURES
VINTAGE sound Guitar amplifier
Wide range input
Input Gain and Boost switch (for over drive)
Staid 3 Band Equalizer (Treble, Mid, Bass)
Custom design 8" speaker
CD input for CD or Tape
Reverb control (spring type)
Stereo Headphone
Foot Switch Jack (over drive)
SPECIFICATIONS
Power Rating
30 Watts RMS @ 8 ohms (THD 5%)
AC 220V 60Hz (Fuse: T500mA250V)
Frequency Response
-3dB @40Hz ~ 20kHz
Treble -16dB 10kHz
Middle -8dB 1kHz
Bass - 15dB 100Hz
Input impedance
20k ohm input
10k ohm CD input
Speaker
8", 8 ohm, 20W
Dimensions
410mm(W) x 235mm(D) x 360mm(H)
Weight
10kg
