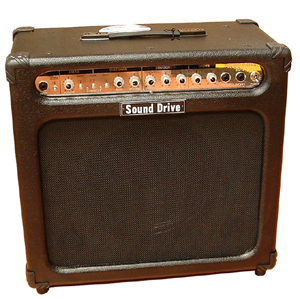

[SG-612R]

60 W (RMS),DUAL CHANNEL-CLEAN/OVER DRIVE

3 BAND ACTIVE EQUALIZER

BRIGHT S/W-CLEAN CHANNEL, BOOST-OVER DRIVE CHANNEL,

NOISE GATE-OVER DRIVE CHANNEL LINE OUT/HEAD PHONE JACK,

FOOT S/W(-CHANNEL SELECTOR- BOOST- REVERB)

SEND/RETURN,12" CELESTION SPEAKER

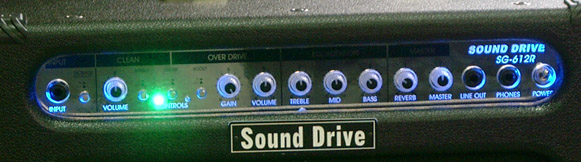

COOL BLUE LIGHT ILLUMINATION PANEL

H,530mm x D,290mm x W,550mm





INPUT

 Connect guitar using a shilded cable

DECIMATOR

 Noise gate on/off (In Over Drive mode)

CLEAN





Volume

 Clean channel pre gain volume

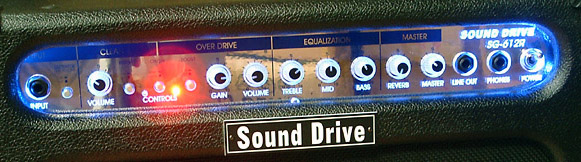

CONTROLS





BRIGHT

 Clean channel bright on/off



CH/SW

 Channel select switch "Clean or OVER DRIVE"



BOOST

 Over drive boost on/off switch

OVRDRIVE





GAIN

 This controlset the amount of compression and distortion from the amplifier



LEVEL

 This controlset output volume from the "OVER DRIVE" channel

EQUALIZATION





TREBLE

 Adjust the high frequency output level with control (+-16dB)



MIDDLE

 Adjust the mid frequency output level with control (+-16dB)



BASS

 Adjust the low frequency output level with control (+- 6dB)

MASTER





REVERB

 Adjust the amount of spring reverb effect level with control



MASTER

 Main volume control



LINE OUT

 This output for the second power amp or through to mixing consol

POWER

 This heavy-duty rocker switch is used to turn the amplifier ON in the up  position Control panel will illumination as cool blue

EFFECT LOOP

 Send & Return

FOOT SWITCH





CB/SW

 Channel selector foot switch



BOOST

 Boost foot switch



REVERB

 Reverb foot switch

SPECIFICATIONS

 Output power Rating ----- 60W RMS @5% THD 8 ohm

 Speaker                 ----- 12" Custom Designed "Celestion" speacker

 Preamp section       ----- -12 dBV/1M ohm

 Frequency response  ----- 40Hz ~ 20kHz(into 8 ohms)

 Power Requirements ----- 230V 60Hz 70 watts max (Fuse: T1A250V)

                                      117V 60Hz 70 watts max (Fuse T2A250V)

 Size and Weight      ----- 550mm(D)x290mm(M)x530mm(H), 18.5kg
